Wireless Transmission Rent in Chandigarh | rent in Mohali

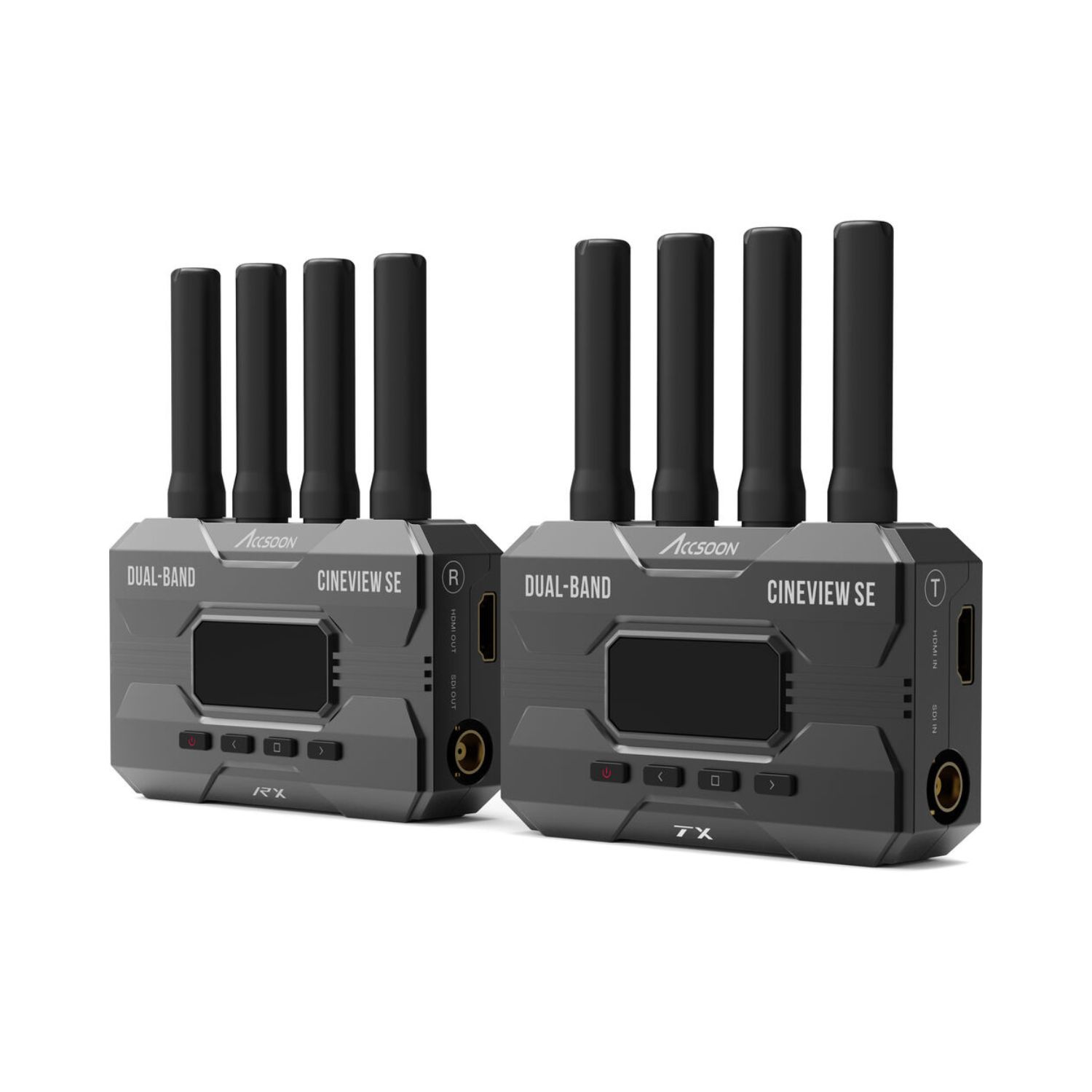

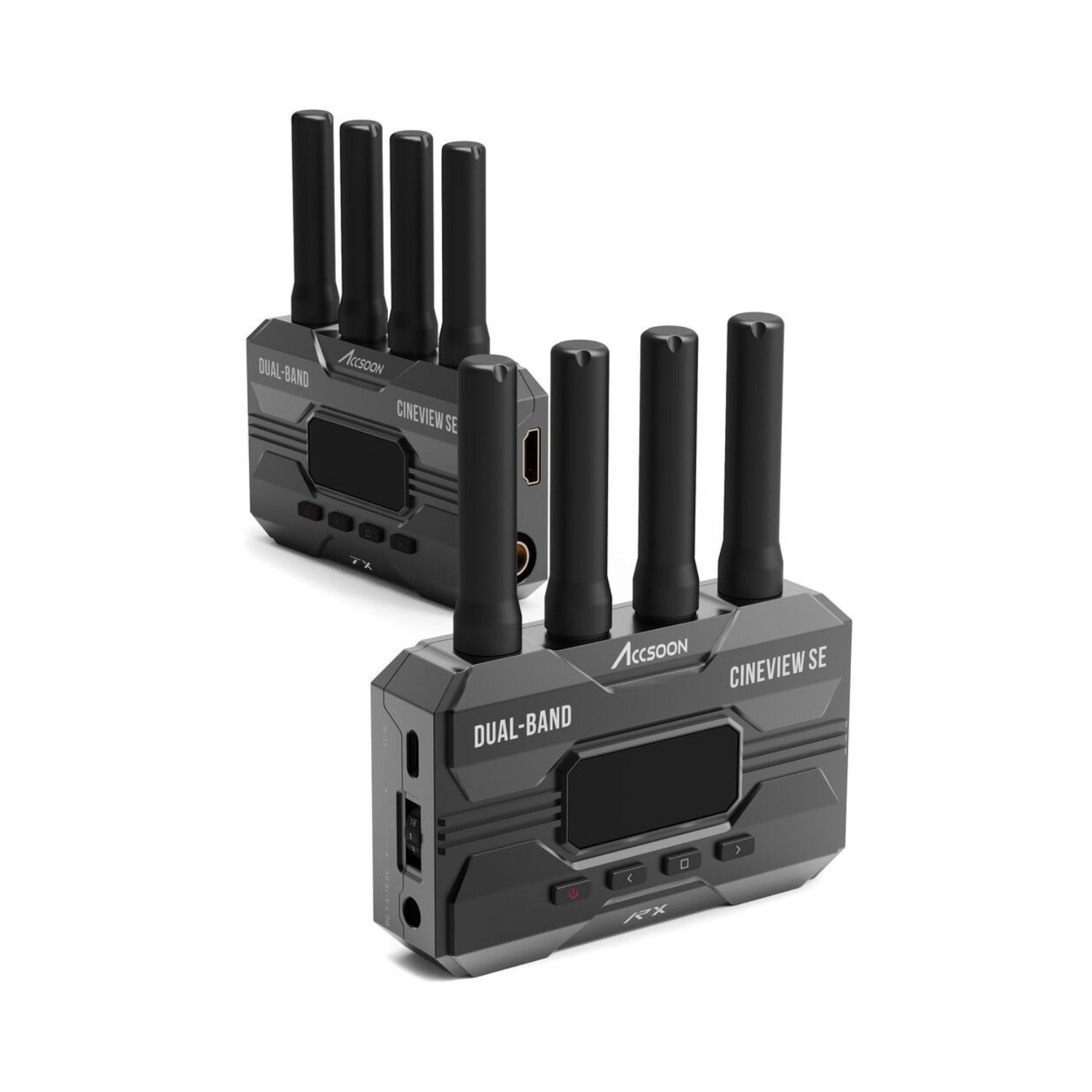

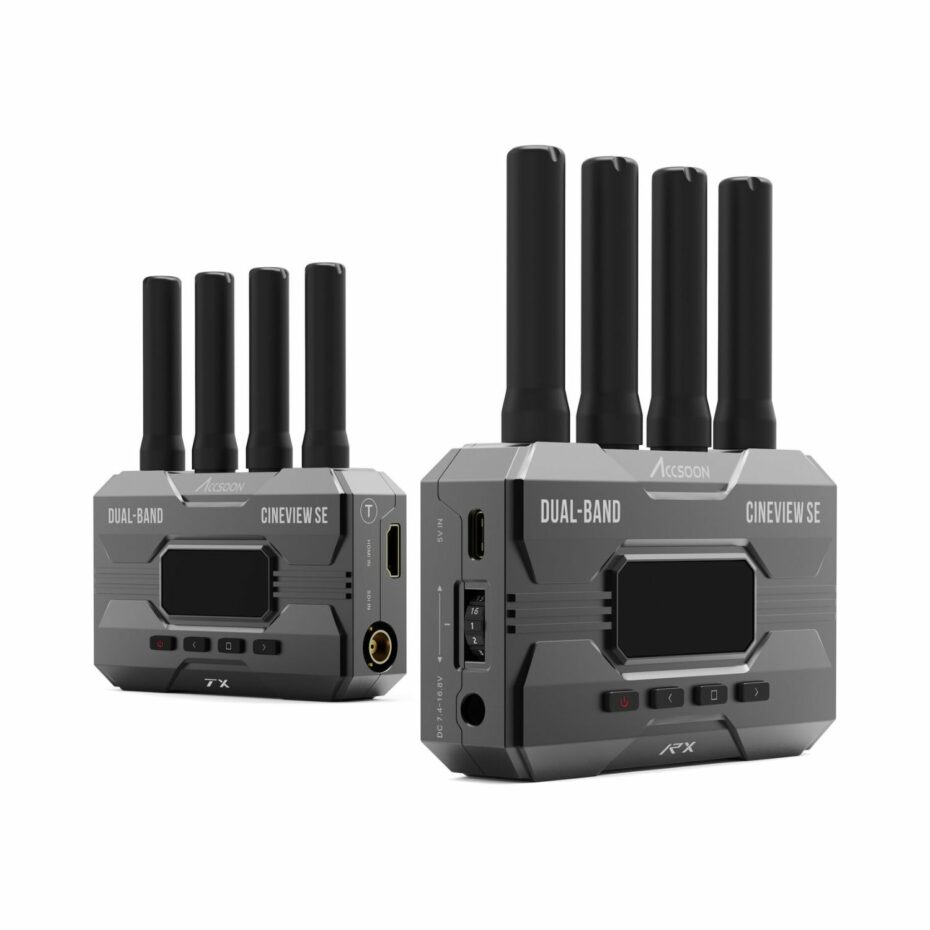

Click here to explore more products Accsoon CineView SE Multi-Spectrum Wireless Video Transmission System on rent
in Tricity
Rent from RentzKart services for flexibility. Small in size, big on features. With new best in
class latency at under 50ms, the CineView SE can transmit a video source via SDI & HDMI up to 1080p 60fps
inputs/outputs. It transmits the signal on 2.4GHz+5GHz Dual-Band frequencies simultaneously for increased signal
stability and sends video at an impressive maximum range of 1200ft line-of-sight.
Market proved wireless stability
The CineView SE utilizes dual-band transmission technology, which allows it to stream video via 2.4GHz and 5GHz
Wi-Fi at the same time. The receiver can then intelligently identify interference and combine the two streams to form
the complete audio and video stream.
Super low & Super far
The CineView SE is the most powerful model
ever created for a faster, more responsive feel. Add to that a strong and powerful enough signal that can transmit up
to 1200ft distance.
CONNECT Everything you need.
The TX and RX feature both HDMI and SDI connections that
support 1080p video inputs at up to 60fps.
DESIGN Compact and lightweight. Easy to rig.

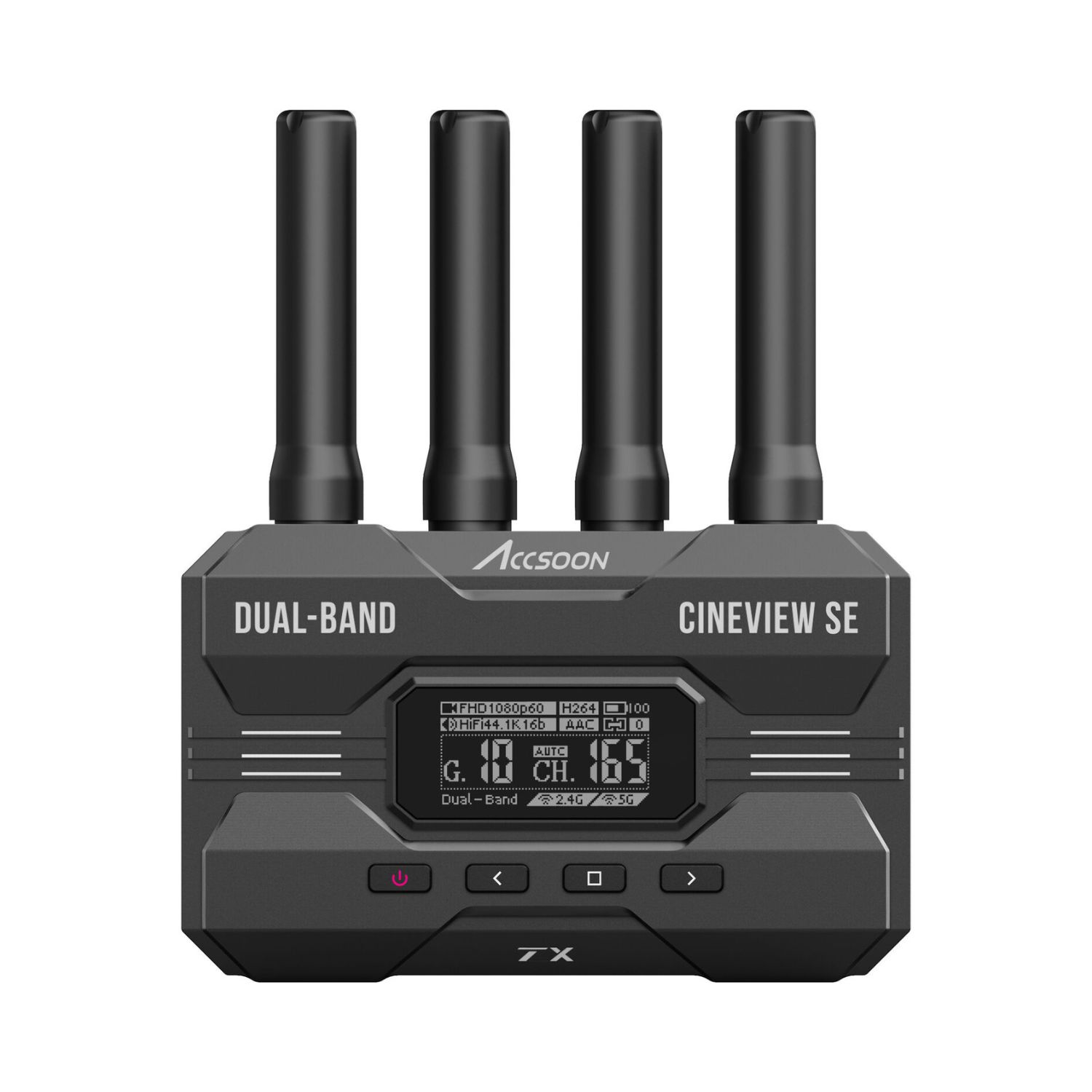

Rugged design with a
1.3-inch OLED display that fits in the palm of your hand. The solid aerospace-grade aluminum construction keeps the
weight of the units down to a minimum.
PRO POWER Lower power draw for longer shootings.
Choose between an
NP-F style battery, a DC input port (7.4V~16.8V) as well as a USB-C power source (5V).
SILENT COOLING No noise at all Seriously, you won’t hear any noise. And it’s very
COOL.
VIEW Monitoring as you like
Enjoy monitoring on up to 4 different devices.
SMART APP Unlock ultra fun
possibilities
Connect and instantly share previews on Accsoon GO.
LUT Loading & Recording
Monitor
and preview the colors in a much better and creative way.
Onion Skin Overlay
Load a preexisting picture then
compare or match the still with the live image.
Multitask with Split View on iPad
Great for working more
efficiently.
Specification
Projects
Transmitter
Video Input
SDI/HDMI
SDI Input Format
1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B
HDMI Input Format
1080p 23.98/24/25/29.97/30/50/59.94/60fps
DC Port
5.5mmx2.1mm center positive
DC Voltage
7.4~16.8V
Audio
44.1KHz/48KHz 16bit/24bit PCM
Latency
<0.05s (Camera latency not included)
OLED Display
1.3inch
Transmission Power
17~20dBm
Transmission Range
1200ft (No obstacles, no interference)
Power Consumption
4.5Watt (Typical)
Operating Environment Temperature
-10~40℃
Dimensions
105mmx66mmx32mm (Antennas not included)
Weight
210g (Antennas not included)
Projects
Receiver
Video Output
SDI/HDMI
SDI Output Format
1080p 24/25/30/50/60fps Level A
HDMI Output Format
1080p 24/25/30/50/60fps
DC Port
5.5mmx2.1mm center positive
DC Voltage
7.4~16.8V
OLED Display
1.3inch
Power Consumption
3.5Watt (Typical)
Operating Environment Temperature
-10~40℃
Dimensions
105mmx66mmx32mm (Antennas not included)
Weight
210g (Antennas not included)
Click here to learn more about product
Wireless Transmission Rent in Chandigarh | rent in Mohali
in Tricity
Rent from RentzKart services for flexibility. Small in size, big on features. With new best in
class latency at under 50ms, the CineView SE can transmit a video source via SDI & HDMI up to 1080p 60fps
inputs/outputs. It transmits the signal on 2.4GHz+5GHz Dual-Band frequencies simultaneously for increased signal
stability and sends video at an impressive maximum range of 1200ft line-of-sight.
Market proved wireless stability
The CineView SE utilizes dual-band transmission technology, which allows it to stream video via 2.4GHz and 5GHz
Wi-Fi at the same time. The receiver can then intelligently identify interference and combine the two streams to form
the complete audio and video stream.
Super low & Super far
The CineView SE is the most powerful model
ever created for a faster, more responsive feel. Add to that a strong and powerful enough signal that can transmit up
to 1200ft distance.
CONNECT Everything you need.
The TX and RX feature both HDMI and SDI connections that
support 1080p video inputs at up to 60fps.
DESIGN Compact and lightweight. Easy to rig.
Rugged design with a
1.3-inch OLED display that fits in the palm of your hand. The solid aerospace-grade aluminum construction keeps the
weight of the units down to a minimum.
PRO POWER Lower power draw for longer shootings.
Choose between an
NP-F style battery, a DC input port (7.4V~16.8V) as well as a USB-C power source (5V).
SILENT COOLING No noise at all Seriously, you won’t hear any noise. And it’s very
COOL.
VIEW Monitoring as you like
Enjoy monitoring on up to 4 different devices.
SMART APP Unlock ultra fun
possibilities
Connect and instantly share previews on Accsoon GO.
LUT Loading & Recording
Monitor
and preview the colors in a much better and creative way.
Onion Skin Overlay
Load a preexisting picture then
compare or match the still with the live image.
Multitask with Split View on iPad
Great for working more
efficiently.
Specification
| Projects | Transmitter |
|---|---|
| Video Input | SDI/HDMI |
| SDI Input Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B |
| HDMI Input Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps |
| DC Port | 5.5mmx2.1mm center positive |
| DC Voltage | 7.4~16.8V |
| Audio | 44.1KHz/48KHz 16bit/24bit PCM |
| Latency | <0.05s (Camera latency not included) |
| OLED Display | 1.3inch |
| Transmission Power | 17~20dBm |
| Transmission Range | 1200ft (No obstacles, no interference) |
| Power Consumption | 4.5Watt (Typical) |
| Operating Environment Temperature | -10~40℃ |
| Dimensions | 105mmx66mmx32mm (Antennas not included) |
| Weight | 210g (Antennas not included) |
| Projects | Receiver |
| Video Output | SDI/HDMI |
| SDI Output Format | 1080p 24/25/30/50/60fps Level A |
| HDMI Output Format | 1080p 24/25/30/50/60fps |
| DC Port | 5.5mmx2.1mm center positive |
| DC Voltage | 7.4~16.8V |
| OLED Display | 1.3inch |
| Power Consumption | 3.5Watt (Typical) |
| Operating Environment Temperature | -10~40℃ |
| Dimensions | 105mmx66mmx32mm (Antennas not included) |
| Weight | 210g (Antennas not included) |
Click here to learn more about product
